PRACTICA 5: RESOLUCIÓN DE LOS PROBLEMAS DE CONFIGURACIÓN DE UNA RED INALÁMBRICA SIGUIENDO PROCEDIMIENTO.

HERRAMIENTAS NECESARIAS PARA LA PRACTICA

• 5 Estaciones de trabajo
• 3 switches.
• 2 Access Point.
• 1 Router.
• 5 cables directos.
• 7 cables de cruzados

La situación:

Dada en la práctica existe una red básica y una red inalámbrica las cuales estaba mal configuradas, por lo cual debemos encontrar el error y corregirlas. Para eso iniciamos con la configuración del Router1

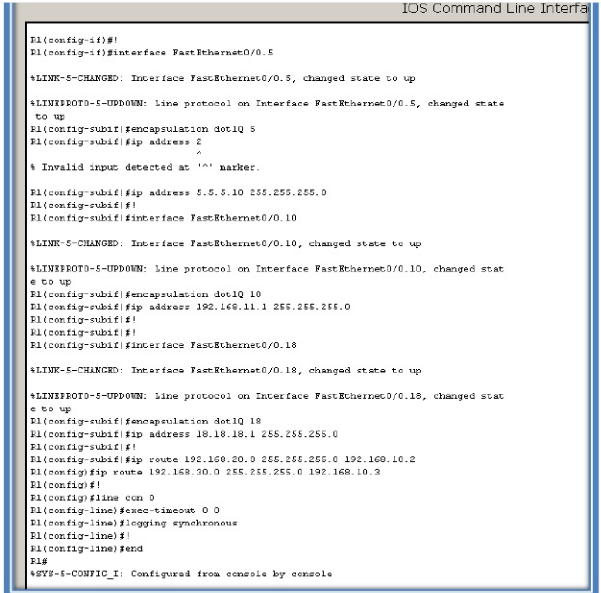

CONFIGURACION DEL ROUTER1

hostname R1

!

interface Loopback0

ip address 10.1.1.1 255.255.255.0

!

interface FastEthernet0/1

no ip address

duplex auto

speed auto

no shutdown

!

interface FastEthernet0/1,5

encapsulation dot1Q 5

ip address 5.5.5.10 255.255.255.0

!

interface FastEthernet0/1,10

encapsulation dot1Q 10

ip address 192.168.11.1 255.255.255.0

!

interface FastEthernet0/1,18

encapsulation dot1Q 18

ip address 18.18.18.1 255.255.255.0

!

ip route 192.168.20.0 255.255.255.0 192.168.10.2

ip route 192.168.30.0 255.255.255.0 192.168.10.3

!

line con 0

exec-timeout 0 0

logging synchronous

!

End

R1

  CONFIGURACION DEL SWITCH 1

hostname S1

!

vtp mode transparent

!

vlan 5,10-11

!

interface FastEthernet0/1

switchport trunk encapsulation dot1q

switchport trunk allowed vlan 5,10,11

switchport mode trunk

!

interface FastEthernet0/2

switchport trunk encapsulation dot1q

switchport trunk allowed vlan 5,10,11

switchport mode trunk

!

interface FastEthernet0/3

switchport trunk encapsulation dot1q

switchport trunk allowed vlan 5,10,11

switchport mode trunk

!

interface FastEthernet0/4

switchport trunk encapsulation dot1q

switchport trunk allowed vlan 5,10,11

switchport mode trunk

!

interface FastEthernet0/5

switchport trunk encapsulation dot1q

switchport mode trunk

!S1

CONFIGURACION DEL SWITCH 2

hostname S2

!

vtp mode transparent

ip subnet-zero

!

vlan 5,10-11,18

!

interface FastEthernet0/1

switchport trunk encapsulation dot1q

switchport trunk allowed vlan 5,10,11,18

switchport mode access

!

interface FastEthernet0/2

switchport trunk encapsulation dot1q

switchport trunk allowed vlan 5,10,11,18

switchport mode access

!

interface FastEthernet0/3

switchport trunk encapsulation dot1q

switchport trunk allowed vlan 5,10,11,18

switchport mode access

!

interface FastEthernet0/4

switchport trunk encapsulation dot1q

switchport trunk allowed vlan 5,10,11,18

switchport mode access

!

interface FastEthernet0/7

switchport trunk encapsulation dot1q

switchport trunk native vlan 10

switchport mode trunk

S2

CONFIGURACION DEL SWITCH 3

hostname S3

!

vtp mode transparent

!

vlan 5,10-11,18

!

interface FastEthernet0/1

switchport trunk encapsulation dot1q

switchport trunk allowed vlan 5,10,11,18

switchport mode trunk

!

interface FastEthernet0/2

switchport trunk encapsulation dot1q

switchport trunk allowed vlan 5,10,11,18

switchport mode trunk

!

interface FastEthernet0/3

switchport trunk encapsulation dot1q

switchport trunk allowed vlan 5,10,11,18

switchport mode trunk

!

interface FastEthernet0/4

switchport trunk encapsulation dot1q

switchport trunk allowed vlan 5,10,11,18

switchport mode trunk

!

interface FastEthernet0/7

switchport trunk encapsulation dot1q

switchport mode trunk
